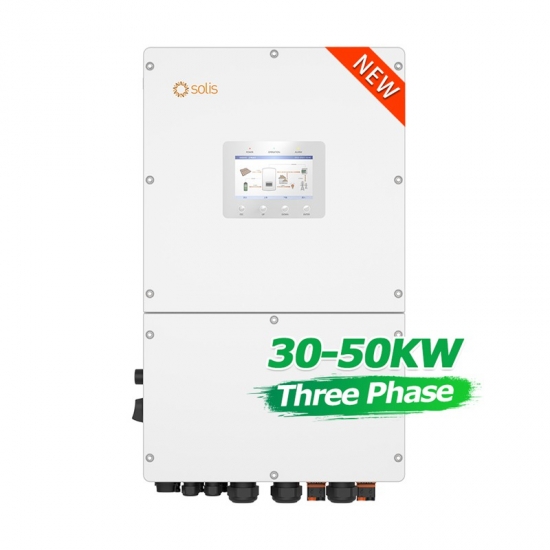

Three Phase 400V Home Storage Inverter 30KW 40KW 50KW Solis Hybrid Solar Inverters with Lithium Battery Price
Specifications of SOLIS 3phase 30KW 50KW Hybrid Inverter DC/AC
| Model |
S6-EH3P 30K-H
|
S6-EH3P 50K-H
|
| Battery | ||
| Battery Type | lithium ion | |
| Battery Voltage Range | 150-850V | |
| MAX Charging Current | 70+70A | 70+70A |
| MAX Discharger Current | 70+70A | 70+70A |
| Number of Battery Input | 2 | 2 |
| External Temperature Sensor | YES | YES |
| Charging strategy for Lithium battery | Self adaptation to BMS | |
| PV Input Data | ||
| MAX PV Input Power | 60KW | 96KW |
| MAX PV Input Voltage | 1000VDC | |
| MPPT Voltage Range | 150-850VDC | |
| PV Input Current | 40A+40A+40A | 40A+40+40+40A |
| NO. of MPPT Trackers | 3 | 4 |
| No. of PV Strings per MPPT | 2+2+2 | 2+2+2+2 |
| AC Output Data | ||
| Rated AC Output Power and UPS power | 30000W | 50000W |
| MAX AC Output Power | 30000W | 50000W |
| Peak Power of OFF GRID | 1.5TIMES of Rated Power, 10S. | |
| AC Output Rated Current | 45.5/43.5A | 75.8/72.5A |
| Max. Continuous AC Passthrough (A) | 60A | 83.3A |
| Output Frequency and Voltage | 50/60Hz; 230/400Vac (Three phase) | 50/60Hz; 230/400Vac (Three phase) |
| Current Harmonic Distortion | THD<3% (Linear load<1.5%) | THD<3% (Linear load<1.5%) |
| Efficiency | ||
| MAX Efficiency | 97.8% | 97.8% |
| MPPT Efficiency | 99.9% | 99.9% |
| Protection | ||
| PV Input Lightning Protection | Integrated | Integrated |
| Anti-islanding Protection | Integrated | Integrated |
| PV String Input Reverse Polarity Protection | Integrated | Integrated |
| Output Over Current Protection | Integrated | Integrated |
| Output Over Voltage Protection | Integrated | Integrated |
| Surge protection | DC Type II / AC Type II | DC Type II / AC Type II |
| Certiffcations and Standards | ||
| Grid Regulation | IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1 | IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1 |
| Safety EMC/Standard | IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12 | IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12 |
As the official authorized dealer of SOLIS, we, can sell all products of SOLIS.
And our HV lithium battery can communication with Solis inverter also.
Including but not limited to various types of inverters, lithium batteries, micro-inverters and other products.
We provide comprehensive after-sales and technical support for all products.
For long-term and powerful customers, we will contact DEYE engineers to go to the customer’s country for technical installation guidance and product training.
All products are in stock.
We also offer Complete solar systems solution, which include solar panel, solar inverter, storage battery,,,,etc.
DDP service around the world.
For more information, please feel free to contact our team
Email: alice@shinewit.com
Whatsapp: +86 15056568964
