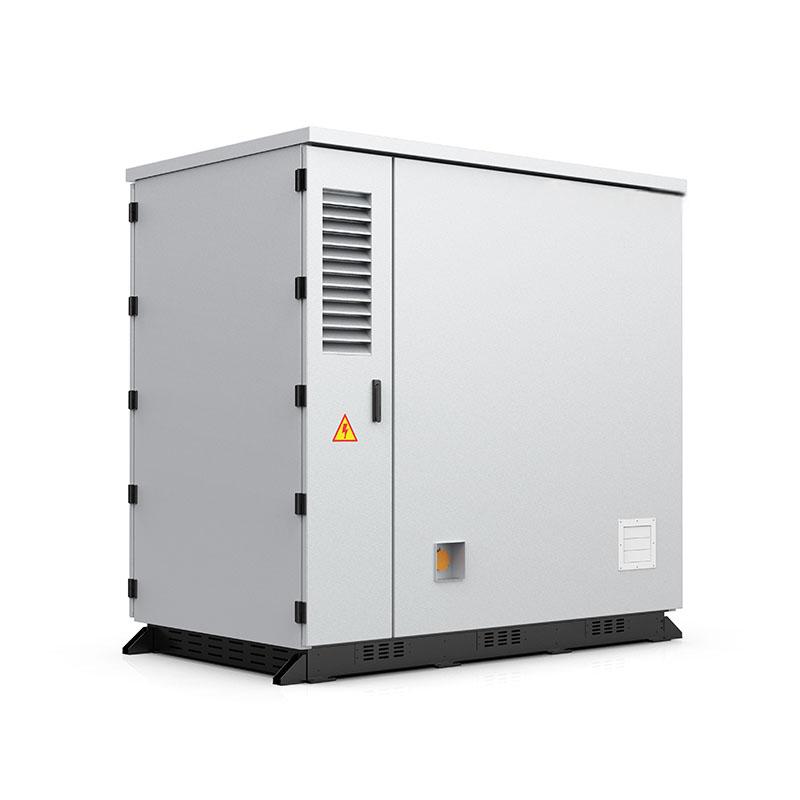

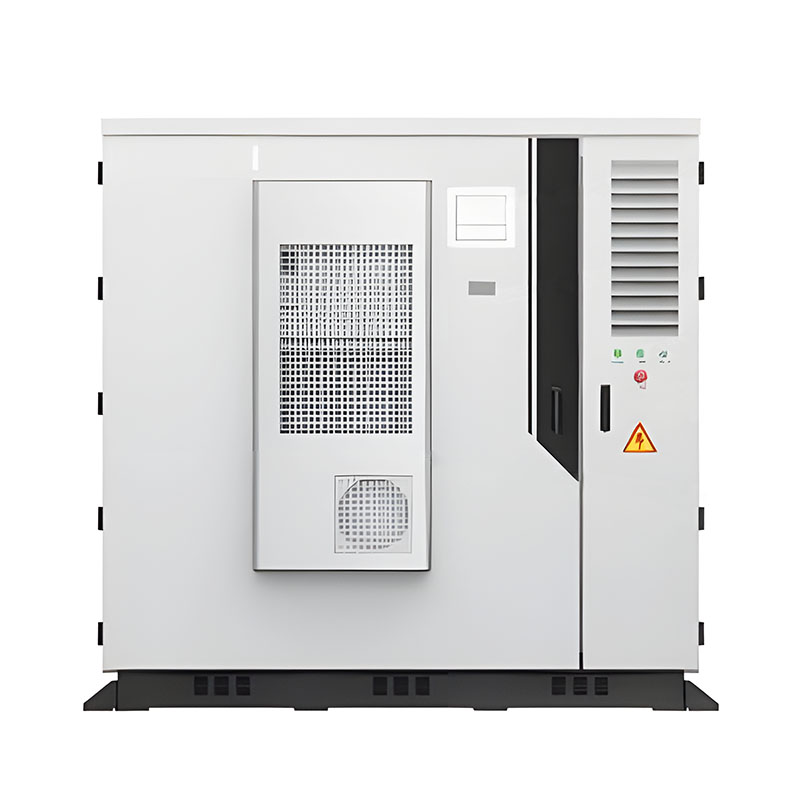

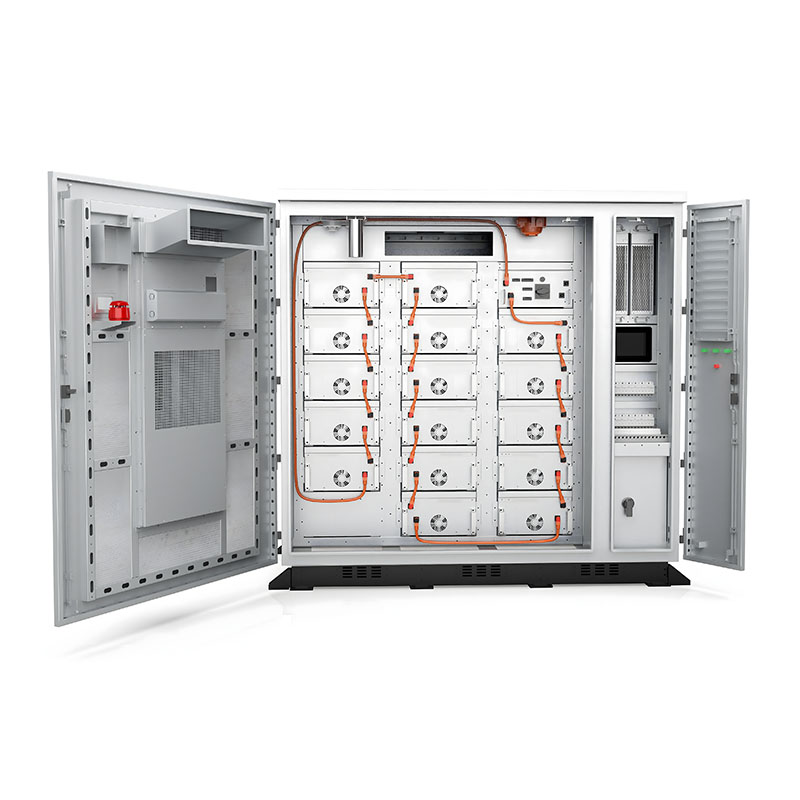

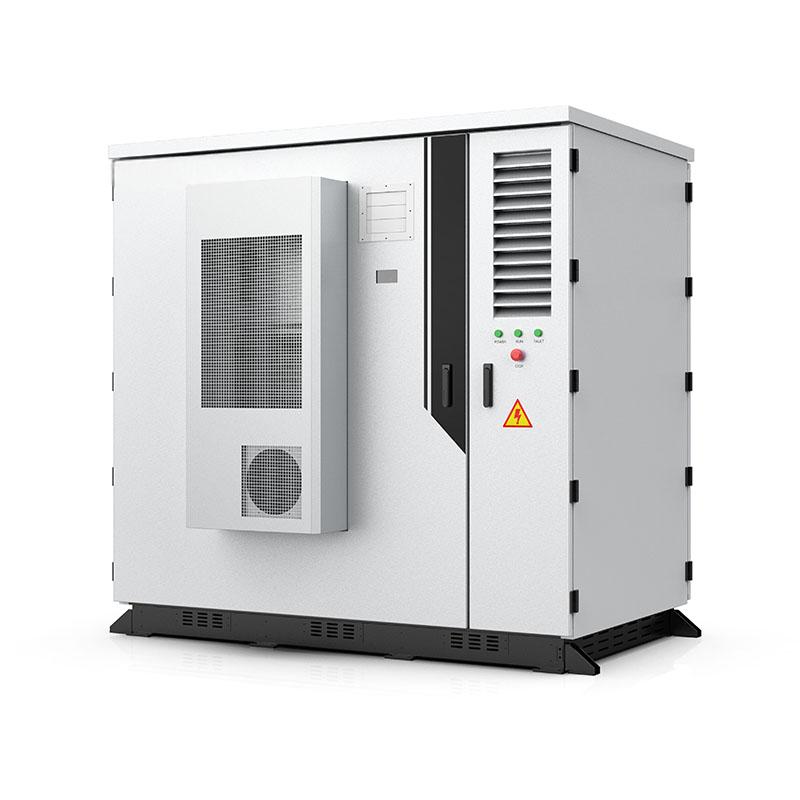

ESS Container Battery 100KWH All in One Energy Storage System
The lithium battery container energy storage system is applied to the integration and consumption of large-scale new energy generation, with an integrated AC/DC design, reducing initial investment, simple operation and maintenance, and improving power supply reliability and energy quality.
| TYPE | 50KW/100KWH | |
| DC BATTERY PARAMETERS | ||
| CELL | LFP 100Ah | |
| PACK | 10.24kWh/2P16 | |
| BATTERY SYSTEM | 102.4kWh/2P160S | |
| VOLTAGE RANGE | 448~584V | |
| TEP. SENSORS | 80 | |
| AC SIDE PARAMETERS | ||
| OUTPUT POWER | 58kw | 86kW |
| MAX POWER | 62.5kW | 103kW |
| THD | ＜3% | |
| DC COMPONENT | < 0.5%lpn | |
| OUTPUT VOLTAGE | 380V | |
| POWER FACTOR | -1~1 | |
| FREQUENCY | 50Hz | |
| SYSTEM PARAMETERS | ||
| MAX EFFIENCY | ≥91% | ≥89% |
| RATE | ≤0.5C | ≤0.5C |
| DEEP | 100%DOD | |
| VOLTAGE | TN380V | |
| LIFE CYCLES | >8000 | |
| SHIFT TIME | <100ms | |
| PORT | CAN/RS485 | |
| PROTECTION | IP55 | |
| COOLING | AIR CONDITION | |
| WOEKING TEP | -35~55°C | |
| HUMIdity | 5~95%RH | |
| NOISE | <70dB | |
| ALTITUDE | ≤2000m | |
| SIZE(W*H*D) | 1400*2200*1050mm | |
| FIRE PROTECTION | AUTOMATIC | |
| WEIGHT | 1500kg | |
