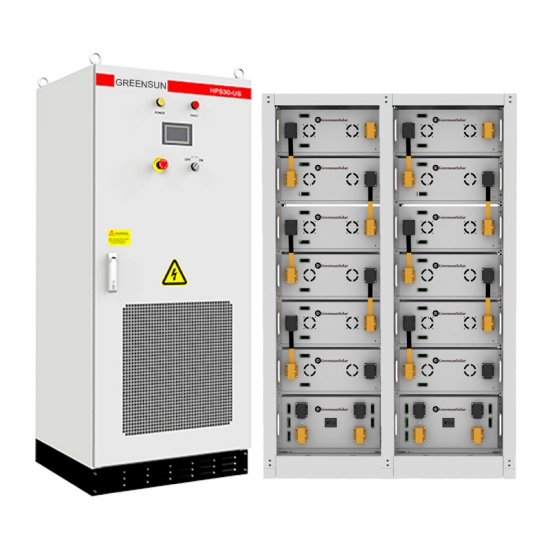

Energy Storage Systems 20KWH 30KWH 50KWH 100KWH Lithium ion Battery with BMS Hybrid Inverter
Wide Applications&Multi Functions of BESS Battery Energy Storage System
Configuration of BESS Battery Energy Storage System
| Configuration of ESS Energy Storage System | |||||
| Battery System Data | |||||
| Battery Type | LFP | ||||
| DC Voltage Range | 450-540VDC | 480-560VDC | 480-560VDC | 576-672VDC | 576-672VDC |
| Nominal Capacity | 48KWH | 102.4KWH | 204.8KWH | 368.64KWH | 516.09KWH |
| Nominal Output Power | 30KW | 50KW | 100KW | 150KW | 250KW |
| Inverter Technical Specification | |||||
| MAX PV Input Power | 45KW | 75KW | 150KW | 225KW | 300KW |
| PV Input Voltage Range | 1000VDC | 1000VDC | 1000VDC | 1000VDC | 1000VDC |
| Number of MPPT | 1 | 1 | 1 | 1 | 3 |
| Short-Circuit Current of PV | |||||
| Battery Voltage Range | 352-600VDC | ||||
| Max Charge/Discharge Current | 100A/93A | 150A/156A | 300A/313A | 350A/374A | 450A/467A |
| AC Rated Voltage&AC Rated Frequency | 360-415VAC; 50/60HZ | ||||
| On Grid Mode of Inverter | |||||
| Rated AC Power(KW) | 30KW | 50KW | 100KW | 150KW | 250KW |
| Rated AC Output Voltage(V) | 360-415VAC | ||||
| Rated AC Output Frequency(Hz) | 50/60HZ | ||||
| THDI | <3% | ||||
| Off Grid Mode of Inverter | |||||
| Rated AC Power(KW) | 30KW | 50KW | 100KW | 150KW | 250KW |
| Rated AC Output Voltage(V) | 360-415VAC | ||||
| Rated AC Output Frequency(Hz) | 50/60HZ | ||||
| Over Load Capacity | 110%-10 mins 120%-1min | ||||
| UPS Data of Inverter | |||||
| Rated AC Power(KW) | 30KW | 50KW | 100KW | 150KW | 250KW |
| Rated AC Output Voltage(V) | 360-415VAC | ||||
| Rated AC Output Frequency(Hz) | 50/60HZ | ||||
For batteries, we generally choose EVE’s A+ quality batteries.
The entire set of products comes with a 12-year warranty.
We have our own factory that provides a complete set of processes such as production, assembly, product testing, communication testing, and packaging.
It can be designed and customized for free according to the customer’s requirements. If the customer needs it, we can also go to the local area to guide workers in installation and testing. (Only for large projects)

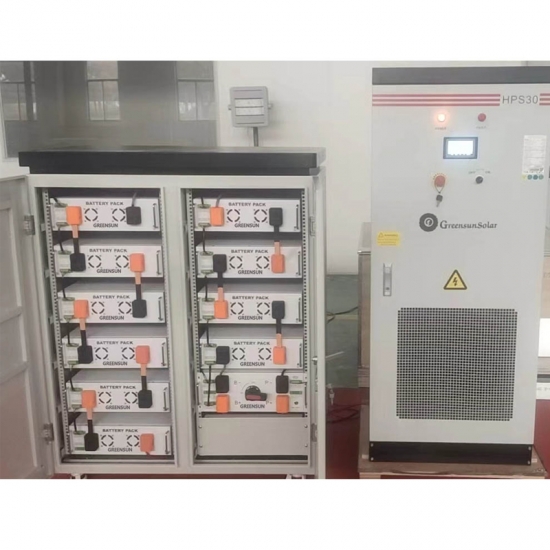

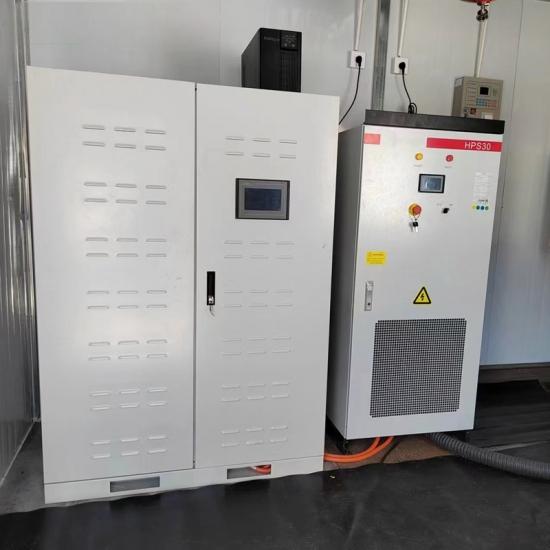

Projects of C&I Energy Storage System
This kind of high-voltage lithium battery is generally used in rack-mounted battery storage systems in islands, large houses, villas, shopping malls, farms and other places.
It can provide safe and reliable energy storage for daily use and backup of residential and commercial solar systems.
The system can be used both indoors and outdoors, is simple to install, maintenance-free, and can monitor operating status in real time. And it is basically compatible with all brands of energy storage inverters, including but not limited to Deye, Sol-Ark, SMA, Schneider, Growatt, Atess, Outback, Megarevo, etc.
