Solar Panels

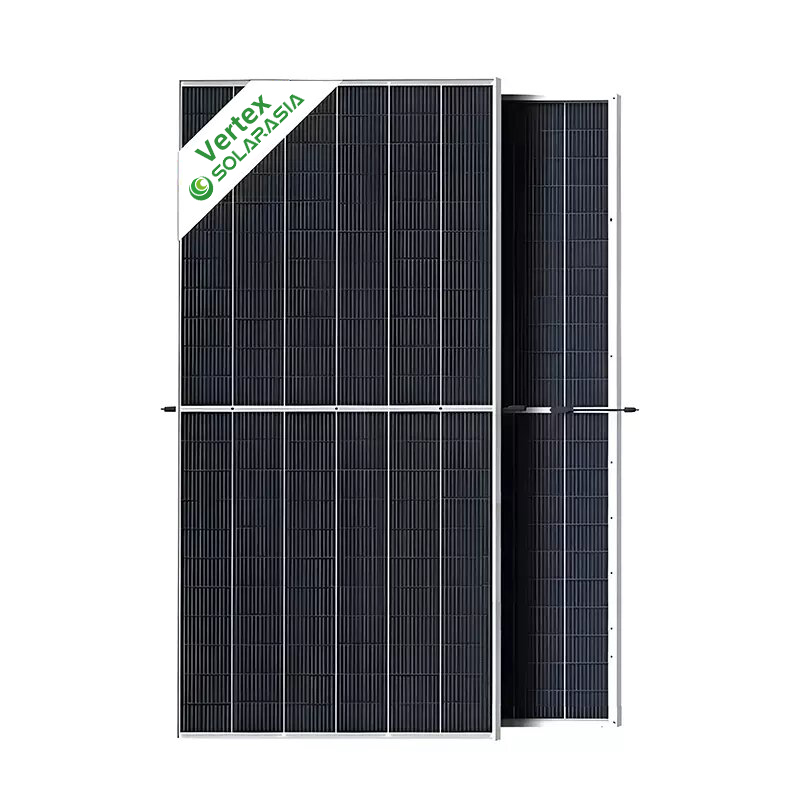

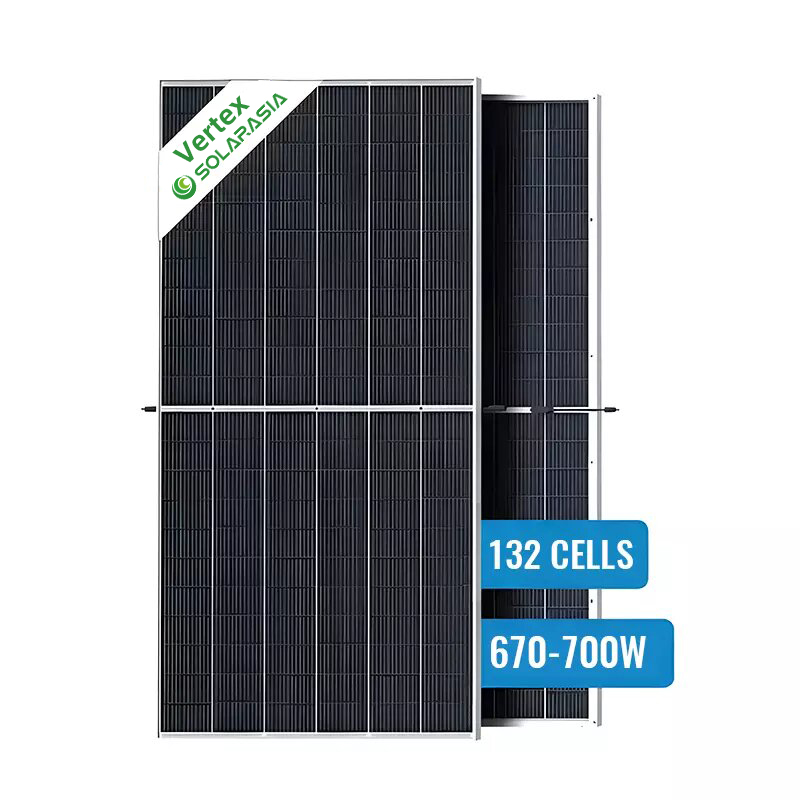

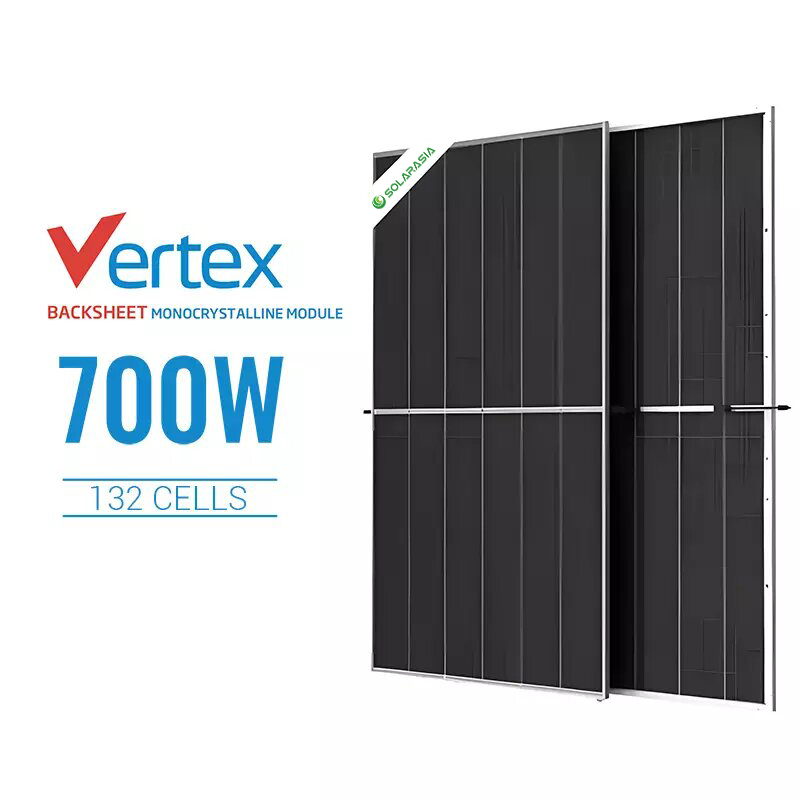

700W High-Power Trina Bifacial Solar Panel

  • Model No :

    TSM-NEG21C.20

  • Weight :

    38.3 kg

  • Dimension :

    2384x1303x33 mm

  • Cell Orientation :

    132 cells

  • Maximum Power (Pmax) :

    700W

  • Maximum Power Voltage (Vmp) :

    40.3 V

Category 品牌:

700W High-Power Trina Bifacial Solar Panel

High customer value

  • Lower LCOE (levelized cost of energy), reduced BOS (balance ofsystem) cost, shorter payback time;
  • Guaranteed first year and annual degradation;
  • High module power; high string powerand low voltage design.

High power up to 695w

  • Up to 22.4% module efficiency with high density interconnect technology;
  • Multi-busbar technology for better light trapping effect, lower series resistance and improved current collection.

High reliability

  • Minimized micro-cracks with innovative non-destructive cutting technology;
  • Ensured PID resistance through cell process and module material control;
  • Resistant to harsh environments such as salt, ammonia, sand, high temperature and high humidity areas;
  • Mechanical performance up to 5400 Pa positive load and 2400 Panegative load.

High energy yield

  • Excellent product bifaciality and low irradiation performance.validated by 3rd party;
  • Extremely low 1% first year degradation and 0.4% annualpower attenuation;
  • The unique design provides optimized energy production underinter-row shading conditions;
  • Lower temperature coefficient (-0.30%)and operating temperatureUp to 30% additional power gain from back side depending on albedo.700W Trian Bifacial Solar Panel



Mechanical Characteristics
Cell Type Monocrystalline
No. of cells 132(6X22)
Dimensions 2384x1303x33 mm (93.86×51.30×1.30 inches)
Weight 38.3 kg (84.4b)
Junction Box IP 68 rated
SPECIFICATIONS

Maximum Power 670W 675W 680W 685W 690W 695W
Maximum Power Voltage 39.2V 39.4V 39.6V 39.8V 40.1V 40.3V
Maximum Power Current 17.09A 17.12A 17.16A 17.19A 17.23A 17.25A
Open-circuit Voltage 47.0V 47.2V 47.4V 47.7V 47.9V 48.3V
Short-circuit Current 18.10A 18.14A 18.18A 18.21A 18.25A 18.28A
Maximum system voltage 1500V DC(IEC)
Maximum series fuse rating 35A
Power tolerance 0~+5W
Front Glass 2.0 mm (0.08 inches)
Back Glass 2.0mm (0.08 inches)
Glass Thickness Double glass, 2.0mm
