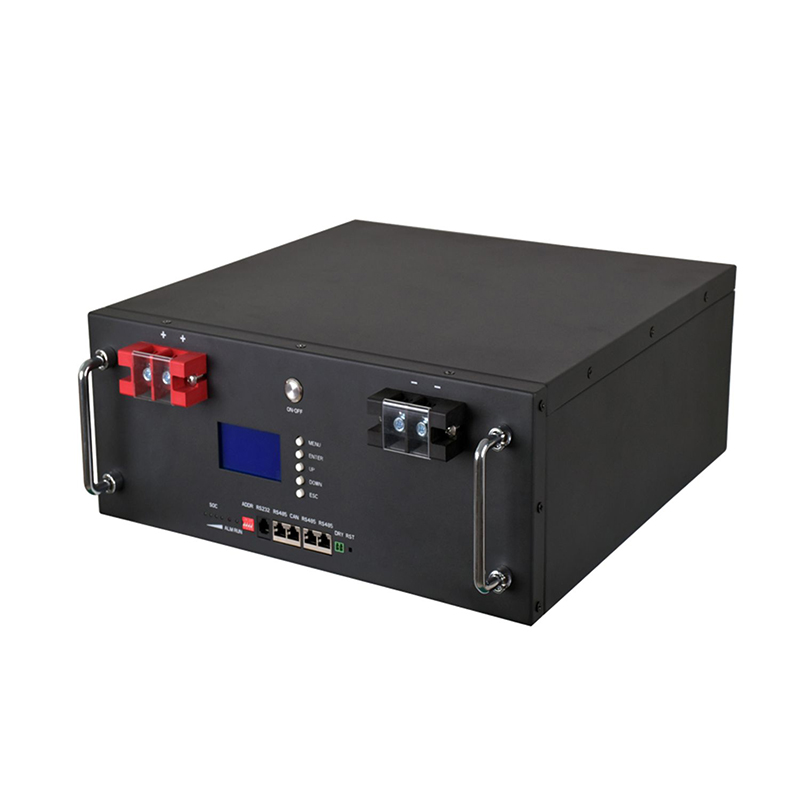

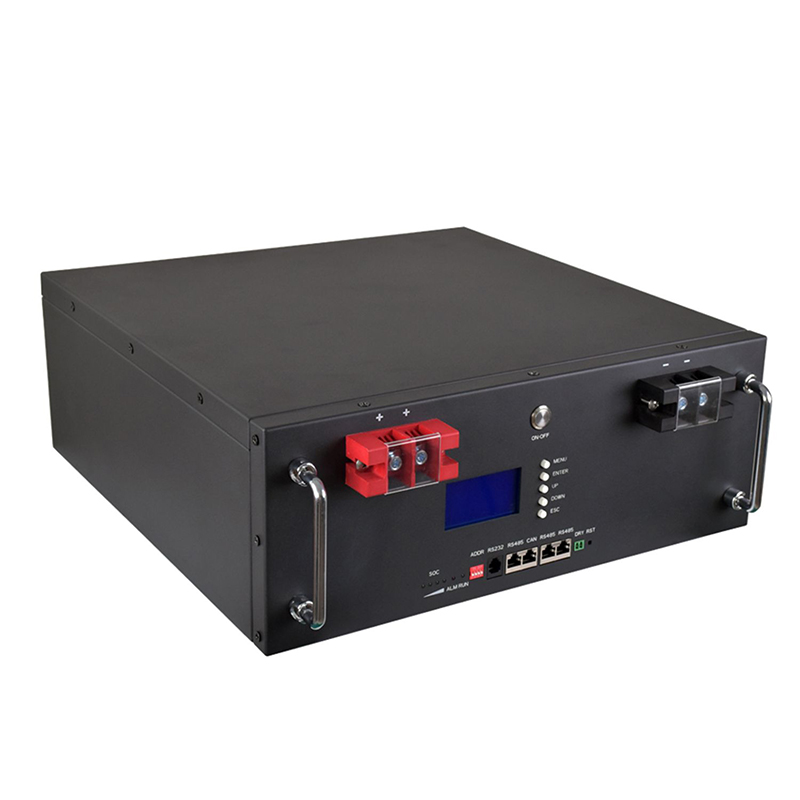

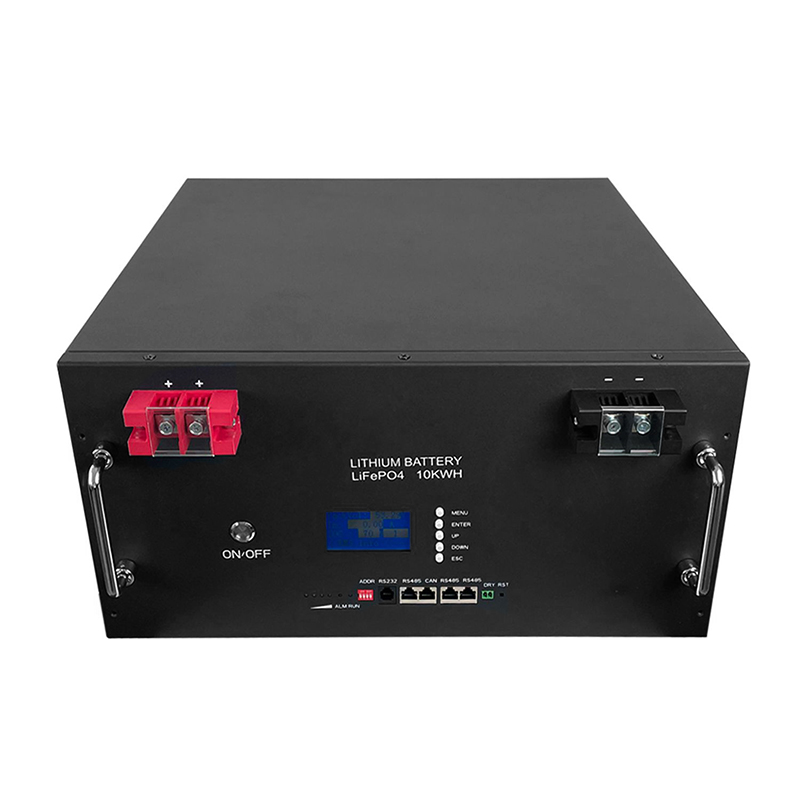

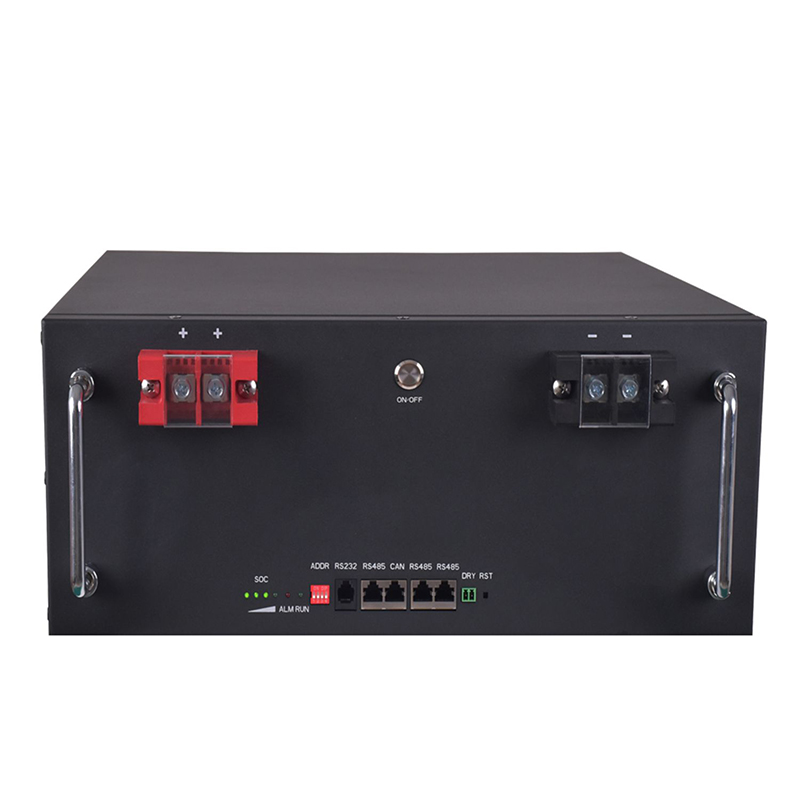

200Ah 51.2V ESS-10240 Rack Storage Lithium Battery
This 10kwh rack ESS is made with 5U 51.2V 200AH lifepo4 battery module, each module is made by 16s2p 30pcs 3.2v 100ah prismatic lifepo4 battery cells inside and smart BMS to support 15pcs parallel connection at max.
| Model | ESS-10240 |
| Battery Type | LiFePO4 |
| Nominal Energy | 10kWh |
| Nominal Capacity | 200Ah |
| Nominal Voltage | 51.2V |
| Battery Cell | 3.2V 100Ah Prismatic Battery Cell |
| Configuration (*S*P) | 16S1P (51.2v 100Ah) |
| Discharge Cut-off Protect Voltage | 40V（adjustable） |
| Charge Cut-off Protect Voltage | 58.4V（adjustable） |
| Max. Charge Current | 80A |
| Max. Discharge Current | 150A |
| Communication Port | CAN, RS485, RS232（Optional） |
| Compatible Inverter Brand | SMA, Growatt, Solax, Solis,DEYE,Sungrow, Sofar, Voltronic, Sorotec, Studer, etc. |
| Module Parallel ability | 1S1P~1S15P(Low Voltage System); |
| Cycle Life | ≥ 6000 Cycle （80% DOD） |
| L*W*H (mm) | 442*520*320mm |
| Weight (KG) | 82Kg |
| Cooling | Natural cooling |
| Environment | Indoor |
| Discharge Temperature (℃) | 0℃~+65℃ |
| Charge Temperature (℃) | -20℃~65℃ |
| Storage Conditions | –20°C to 30°C (–4°F to 86°F)Up to 95% RH, non-condensingState of Energy (SoE): 25% |
| Maximum Elevation | 3000 m (9843 ft) |
| Installation Method | Rack mounted |
